胖AP mac地址過濾完成圖文使用教程

發布時間:2025-04-05 文章來源:xp下載站 瀏覽:

路由器(Router)是連接兩個或多個網絡的硬件設備,在網絡間起網關的作用,是讀取每一個數據包中的地址然后決定如何傳送的專用智能性的網絡設備,路由器最主要的功能為實現信息的轉送。

本文介紹在思科胖AP上配置mac地址過濾的方法,比較簡單,記錄一下。
思路
1.需要創建一個MAC地址訪問列表,該列表在700-799數字范圍內。
2.使用dot11 association mac-list命令將其綁定在無線接口上。
配置
configure terminal
access-list 701 permit 0026.5a0e.3123 0000.0000.0000
dot11 association mac-list 701
代表只允許mac為0026.5a0e.3123的設備接入網絡,其它設備無法。
0000.0000.0000代表48位硬件地址掩碼,默認都需要加上。

configure terminal
access-list 701 deny 0026.5a0e.3123 0000.0000.0000
dot11 association mac-list 701
代表拒絕 mac為0026.5a0e.3123的設備接入網絡,其它設備可以接入。
范例
ap#show dot11 associations

802.11 Client Stations on Dot11Radio0:

SSID [CORPORATE] :

MAC Address IP address Device Name Parent State
0026.5a0e.3123 10.100.146.129 ccx-client – self Assoc // JUST ALLOW THIS
10a5.d0e0.7456 10.100.146.133 ccx-client – self Assoc

ap#configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
ap(config)#access-list ?
<1-99> IP standard access list
<100-199> IP extended access list
<1100-1199> Extended 48-bit MAC address access list
<1300-1999> IP standard access list (expanded range)
<200-299> Protocol type-code access list
<2000-2699> IP extended access list (expanded range)
<700-799> 48-bit MAC address access list
dynamic-extended Extend the dynamic ACL absolute timer
rate-limit Simple rate-limit specific access list

ap(config)#access-list 701 ?
deny Specify packets to reject
permit Specify packets to forward

ap(config)#access-list 701 permit ?
H.H.H 48-bit hardware address

ap(config)#access-list 701 permit 0026.5a0e.3123 ?
H.H.H 48-bit hardware address mask
<cr>

ap(config)#access-list 701 permit 0026.5a0e.3123 0000.0000.0000
ap(config)#

ap(config)#dot11 association ?
mac-list filter client with a MAC address access list

ap(config)#dot11 association mac-list ?
<700-799> Ethernet address access list

ap(config)#dot11 association mac-list 701 // APPLY TO RADIO INTERFACE
ap(config)#
*Oct 28 09:49:01.194: %DOT11-6-DISASSOC: Interface Dot11Radio0, Deauthenticating Station 10a5.d0e0.7456
*Oct 28 09:49:01.194: %DOT11-6-DISASSOC: Interface Dot11Radio0, Deauthenticating Station d025.988f.7789
*Oct 28 09:49:01.374: %LINK-5-CHANGED: Interface Dot11Radio0, changed state to reset
*Oct 28 09:49:01.403: %LINK-3-UPDOWN: Interface Dot11Radio0, changed state to up
*Oct 28 09:49:01.414: %DOT11-4-MAXRETRIES: Packet to client 10a5.d0e0.7456 reached max retries, removing the client
*Oct 28 10:12:04.141: %DOT11-6-ASSOC: Interface Dot11Radio0, Station 0026.5a0e.3123 Associated KEY_MGMT[NONE]

ap#show dot11 associations

802.11 Client Stations on Dot11Radio0:

SSID [CORPORATE] :

MAC Address IP address Device Name Parent State
0026.5a0e.3123 10.100.146.129 ccx-client – self Assoc

附:web配置方法

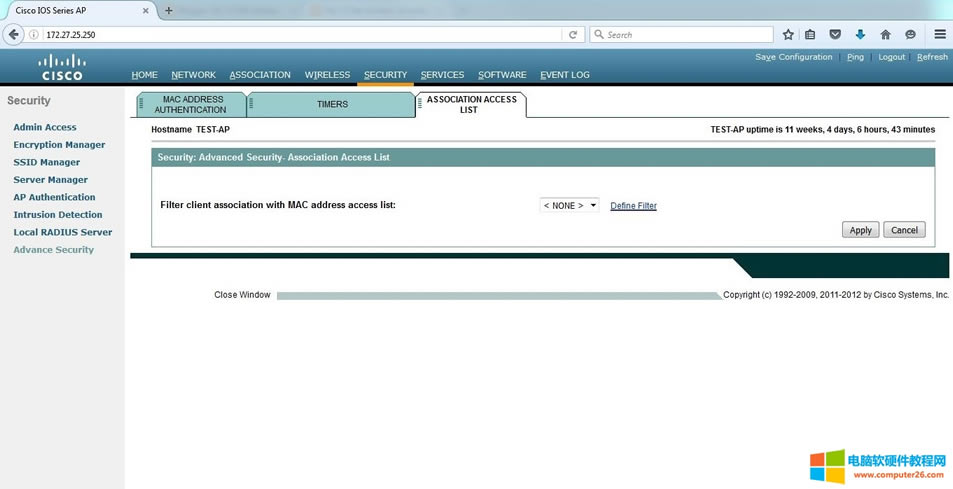

Security > Advance Security > Association Access List > Define Filter.

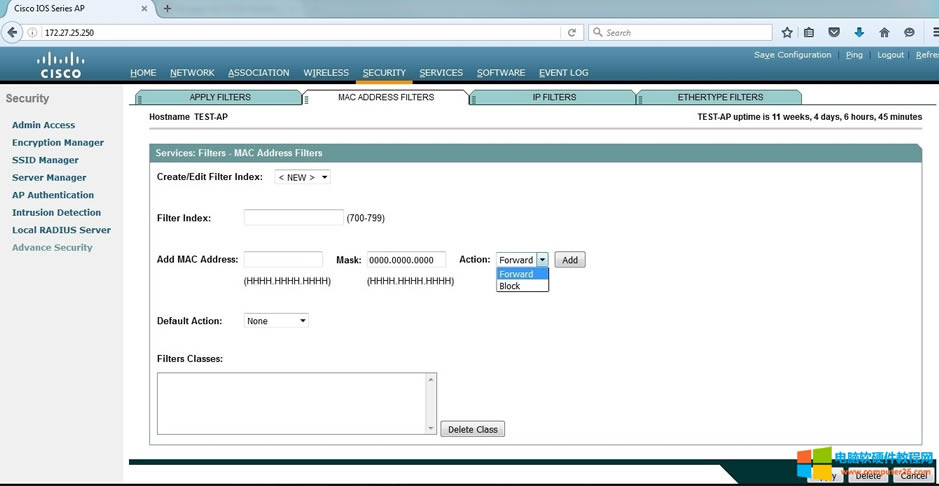

Type the Filter Index (starts in ACL number 700 and ends 799) > type the MAC address in dotted hexadecimal format (HHHH.HHHH.HHHH) > under Action choose either Forward or Block > Add > Apply.

胖AP mac地址過濾實現教程1
胖AP mac地址過濾實現教程2




本文可以幫助您基本地設置和管理您的路由器。

本文章關鍵詞: 胖AP mac地址過濾
